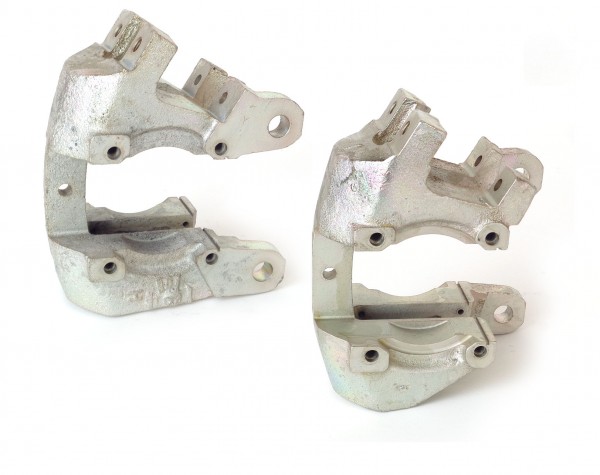

SMALL DUNLOP CALLIPER BODIES - front new

Brand new, manufactured using top quality castings, Small Dunlop Calliper Bodies to suit 48mm square pads. These have 3.00" bolt centres to mount direct to the original standard E-Type front upright.

E-Type's should use wide body callipers to suit 1/2" thick discs with SR1 or SR3 diff case. Narrow bodies are to suit other Jaguar applications. Please see images for a comparison between the standard and wide body versions.

Reconditioned also available.

SMALL DUNLOP CALLIPER BODIES - front reconditioned

Small Dunlop Calliper Bodies to suit 48mm square pads reconditioned by ourselves. The fronts have 3.00" bolt centres to mount direct to the original standard E-Type front upright.

E-Type's should use wide body callipers to suit 1/2" thick discs with SR1 or SR3 diff case. Narrow bodies are to suit other Jaguar applications.

Brand New now also available.

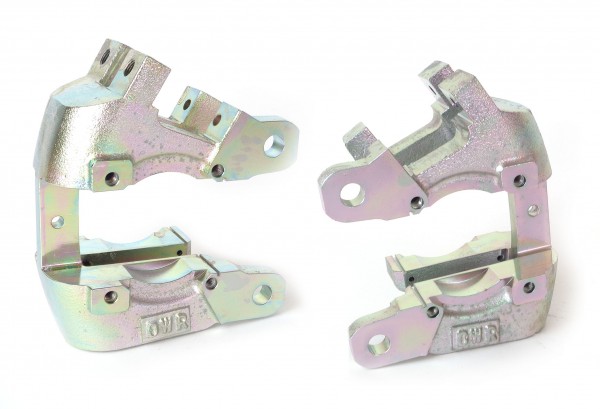

SMALL DUNLOP CALLIPER - rear new

Brand New, manufactured using top quality castings, small Dunlop Calliper Bodies. These rear bodies suit the same size 48mm square pads as the fronts and incorporate the handbrake calliper mounting lugs, with 2 3/4" bolt centres.

E-Type's should use wide body callipers to suit 1/2" thick discs with SR1 or SR3 diff case. Narrow bodies are to suit other Jaguar applications. Please see images for a comparison between the standard and wide body versions.

Reconditioned callipers also available.

SMALL DUNLOP CALLIPER - rear reconditioned

Reconditioned by ourselves, Small Dunlop Calliper Bodies. These rear bodies suit the same size 48mm square pads as the fronts and incorporate the handbrake calliper mounting lugs, with 2 3/4" bolt centres.

E-Type's should use wide body callipers to suit 1/2" thick discs with SR1 or SR3 diff case. Narrow bodies are to suit other Jaguar applications.

Brand new callipers also available.

COMPETITION DISCS

These 1/2" thick competition discs are made from very high quality castings to withstand the temperatures and rigours of racing.

Suitable for Girling or Dunlop callipers.

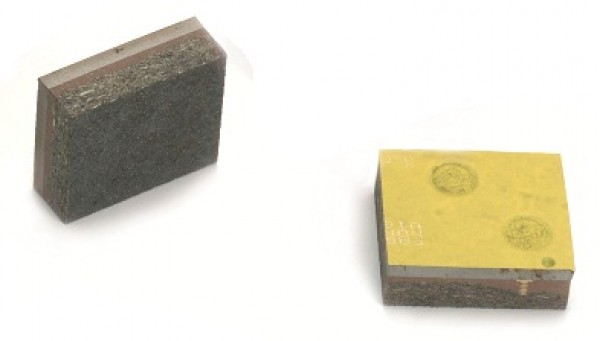

COMPETITION BRAKE PADS

Available in a variety of compounds, bonded to a thick steel backing plate 48mm square. RS14 suit fast road driving, the rest suit race.

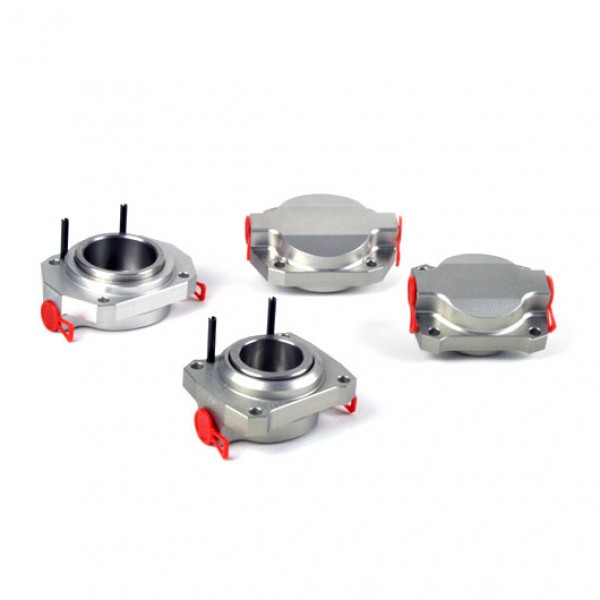

COMPETITION PISTON ASSEMBLIES-SMALL

Aluminium bodies with stainless steel pistons and modern seals to suit 48mm square pad calliper body. These help reduce the heat sink and reduce piston pull back. Must be used with brake pads which have thick steel backing plates. Available with different piston diameters to suit front and rear. Alternative piston diameters available to order.

PAD RETAINERS

Reproduction of standard.  To suit small or large Dunlop calipers.

Sold Individually.
