Straight Port Top End

Show:

CAST IRON NEW CAMSHAFTS

Brand new cast iron camshafts as the originals, all supplied with oil fed large base circles and four bolt sprocket fixings. Now an affordable option for a brand new outright sale. Please click to download the attachment below for a Camshaft Profile Specification Sheet that includes a description of the different cam profiles.

Straight Port Top End
Code: JENG657A
Sku: JENG657A
Availability: In Stock
JENG657A
£749.00
Qty

Attachments

Jaguar Cam Timing Chart 6 Cylinder.pdf Jaguar Cam Timing Chart 6 Cylinder.pdf View Download

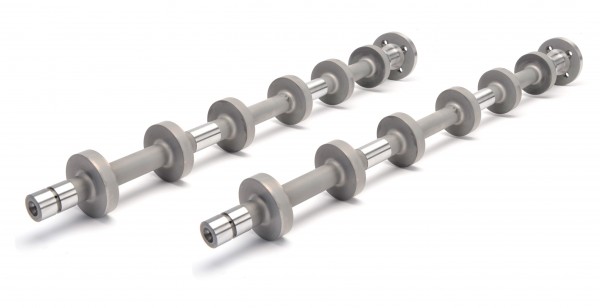

Blank Billet Camshafts

Fully finished blank steel billet camshaft for final profiling and heat treatment to your specification, by ourselves or your cam grinder. These four bolt sprocket fixing camshafts are gun drilled through their entire length. Lobe drilled in each cam base circle as required after final grinding. Purchased individually.

Straight Port Top End
Code: JCENG656B
Sku: JCENG656B
Availability: In Stock
JCENG656B
£565.00
Qty
Code: JCENG656BI
Sku: JCENG656BI
Availability: In Stock
JCENG656BI
£495.00
Qty

CAMSHAFT LUBE

Specially formulated to help lubricate camshaft and buckets on start up. Always apply liberally to both cam and buckets during engine build-up.

Straight Port Top End
Code: CENG966
Sku: CENG966
Availability: In Stock
CENG966
£2.95
Qty

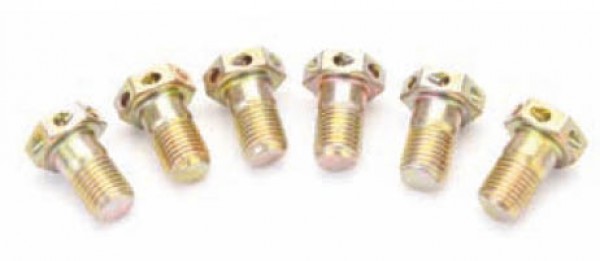

Cam Sprocket Bolts

High grade lightweight aircraft quality bolts, pre-drilled for lock-wire. Fit for the job, road or race.

Straight Port Top End
Code: JENG653
Sku: JENG653
Availability: In Stock
JENG653
£9.95
Qty

STEEL CAM FOLLOWERS

1 3/8" diameter standard size bucket cam followers, fully heat treated steel and lightweight. A direct replacement for the standard item.

Code: JCENG660A
Sku: JCENG660A
Availability: In Stock
JCENG660A
£23.90
Qty

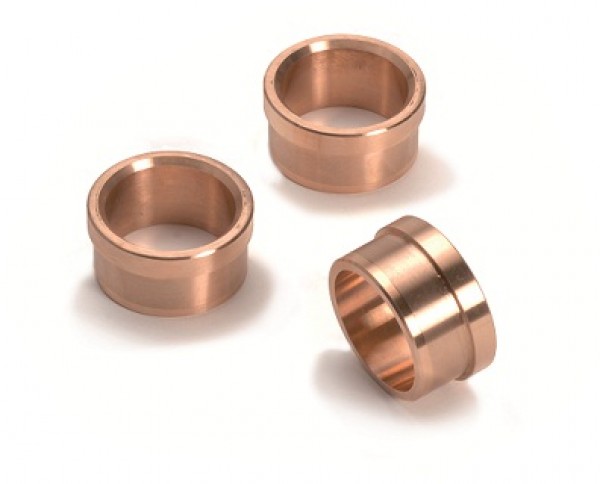

LARGE DIAMETER CAM FOLLOWER SLEEVES

1 1/2" diameter sleeves to suit the large cam buckets required when using race camshafts. Precision ground OD manufactured from Colisbro-Bronze, the best lubrication and hardest wearing material, a must for this application. Supplied with slightly undersize ID to allow for final sizing once fitted.

Straight Port Top End
Code: JCENG660S
Sku: JCENG660S
Availability: In Stock
JCENG660S
£32.50
Qty

LARGE DIAMETER STEEL CAM FOLLOWERS

Lightweight and fully heat treated these 1 1/2" diameter bucket followers are necessary when using race cams. They will require the cylinder head sleeves to be replaced for larger ones. Price stated is per item.

Straight Port Top End
Code: JCENG660
Sku: JCENG660
Availability: In Stock
JCENG660
£24.90
Qty

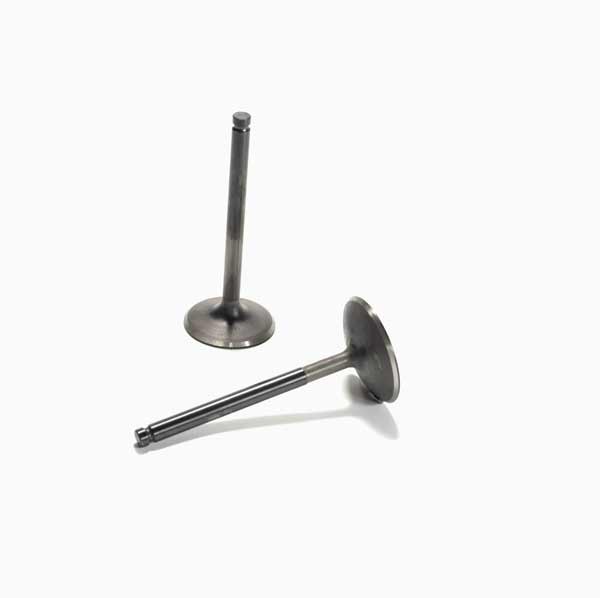

STAINLESS STEEL COMPETITION VALVES

Specially designed and made for us by one of Britain's leading valve manufacturers. This new 21st century look at the design has produced a valve of increased flow with decreased weight for those all important extra few horse power. Made of the best quality stainless steel 214N with steelite tips and tuftrided.

Straight Port Top End
Code: JCENG721S
Sku: JCENG721S
Availability: In Stock
JCENG721S
£21.50
Qty
Code: JCENG720S
Sku: JCENG720S
Availability: In Stock
JCENG720S
£24.00
Qty

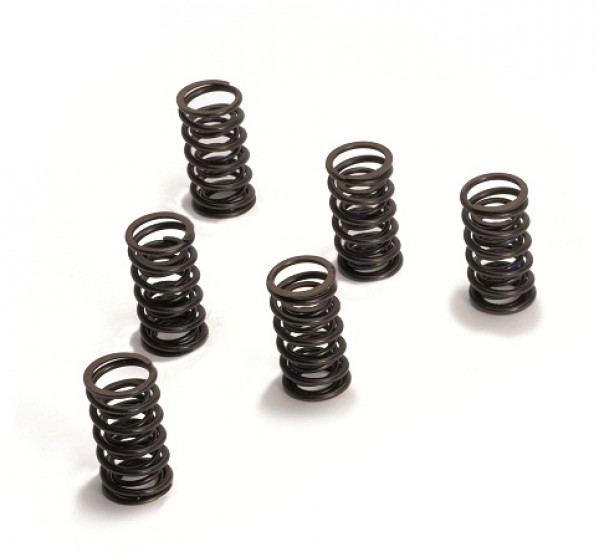

VALVE SPRINGS

Tried and tested competition springs to suit these demanding conditions. Both sets suit the original top cap, however fitted lengths must be checked.

Straight Port Top End
Code: JENG725HD
Sku: JENG725HD
Availability: In Stock
JENG725HD
£59.50
Qty
Code: JCENG725
Sku: JCENG725
Availability: In Stock
JCENG725
£238.75
Qty

VALVE SPRING SHIMS

We have had these made specifically so that the race engines and badly worn road engines can have all the valve springs shimmed to the correct length. We have two sizes of bore diameter available to suit valve guides with or without circlips.

Straight Port Top End
Code: CENG725A
Sku: CENG725A
Availability: In Stock
CENG725A
£0.69
Qty
Code: CENG725B
Sku: CENG725B
Availability: In Stock
CENG725B
£0.69
Qty
Code: CENG725C
Sku: CENG725C
Availability: In Stock
CENG725C
£0.69
Qty
